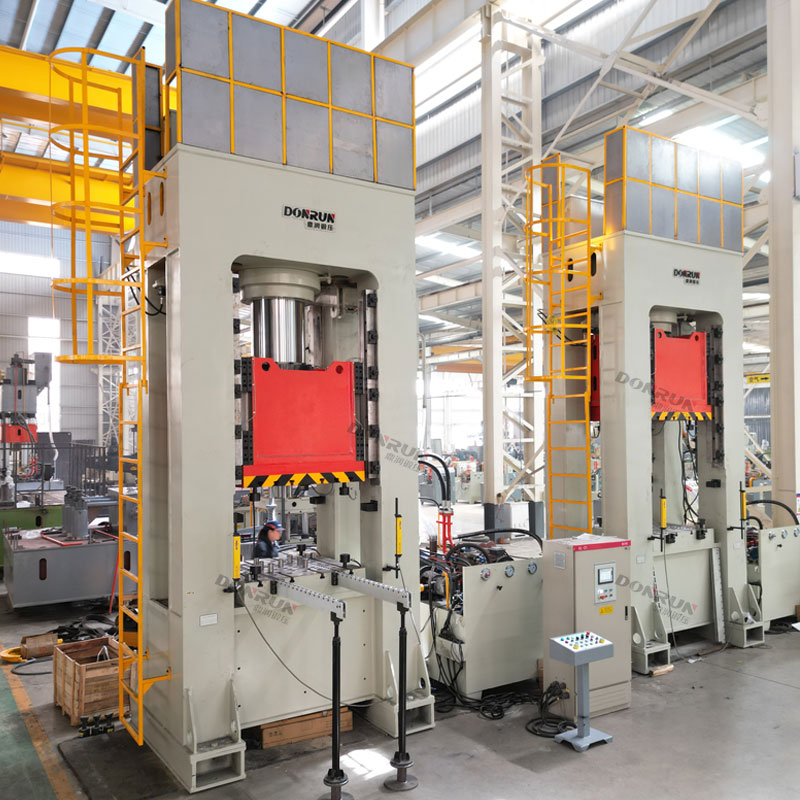

Innovations Unleashed: The Versatility of a 500-Ton Hydraulic Machine
Introduction: The Powerhouse Behind Diverse Applications
In the realm of heavy machinery, few tools embody the essence of versatility and raw power quite like a 500-ton hydraulic machine. These beasts of industrial engineering have transformed countless industries, from automotive manufacturing to aerospace, construction, and beyond. Their ability to exert immense force with precision and control makes them indispensable in a wide array of applications. This article delves deep into the multifaceted world of the 500-ton hydraulic machine, exploring its innovative uses, the technology driving it, and the transformative impact it continues to have on various sectors.
The Heart of the Machine: Hydraulic Technology
At the core of every 500-ton hydraulic machine lies the principle of hydraulics—a technology that has stood the test of time. Hydraulic systems operate on Pascal's principle, stating that pressure applied to an enclosed fluid is transmitted undiminished throughout the fluid and to the walls of the container. This fundamental concept allows for the conversion of mechanical force into hydraulic pressure, enabling machines to exert forces far beyond what would be possible through purely mechanical means.
Components of a Hydraulic System
Pump: Generates the flow of hydraulic fluid.
Reservoir: Stores the hydraulic fluid when not in use.
Valves: Control the direction and flow rate of the fluid.
Actuators: Convert hydraulic pressure into mechanical motion. These can be cylinders or motors.
Accumulator: Stores energy in the form of compressed gas or fluid to assist with sudden pressure spikes.
The Role of Fluids
Hydraulic fluids are crucial in transmitting force and lubricating the system. They must possess specific properties such as viscosity stability, fire resistance, and corrosion inhibition to ensure optimal performance under varying conditions. The choice of fluid can significantly impact the efficiency, reliability, and lifespan of the hydraulic machine.
The Versatility Spectrum: Diverse Applications of a 500-Ton Hydraulic Machine
The versatility of a 500-ton hydraulic machine stems from its ability to adapt to a multitude of tasks, each demanding unique force characteristics and precision levels. Below are some of the most significant applications across various industries.
Automotive Manufacturing
In the automotive industry, 500-ton hydraulic machines are pivotal in press operations, including stamping, forming, and die-casting. These machines are essential for manufacturing car body panels, chassis components, and engine parts. Their precision and repeatability ensure that each component meets stringent quality standards, contributing to the overall safety and performance of the vehicles.
Stamping Presses: Utilize high-speed, high-force cycles to shape metal sheets into complex geometries. The accuracy and consistency of these presses are crucial for achieving the desired dimensions and surface finish.
Die-Casting: Involves injecting molten metal under high pressure into a mold cavity. The rapid solidification of the metal results in parts with excellent dimensional accuracy and surface finish. 500-ton hydraulic machines provide the necessary force to fill intricate molds consistently.
Aerospace Industry
The aerospace industry demands components of the utmost precision and reliability. 500-ton hydraulic machines play a crucial role in the manufacturing of aircraft parts, including landing gear, wing assemblies, and structural components. The machines' ability to handle high-strength materials like titanium and composites is essential for meeting the industry's rigorous safety standards.
Forming and Bending: Aerospace components often require complex shapes and contours. Hydraulic presses enable the precise forming and bending of these materials without compromising their mechanical properties.
Riveting and Assembly: Hydraulic riveting machines use controlled force to join components securely, ensuring airtight seals and structural integrity in aircraft assemblies.
Construction and Infrastructure
In construction, 500-ton hydraulic machines are used for tasks ranging from pile driving and demolition to precast concrete production. Their immense force-generating capabilities make them indispensable in projects requiring heavy lifting, pressing, or compacting.
Pile Driving: Hydraulic pile drivers are used to install piles deep into the ground, providing a stable foundation for structures such as bridges and high-rise buildings.
Demolition: Hydraulic breakers and shears attached to excavators can demolish concrete structures and metal beams efficiently and safely.
Precast Concrete Production: Hydraulic presses are used to mold and cure precast concrete elements, such as beams, columns, and wall panels, ensuring uniform strength and quality.
Mining and Quarrying
The mining industry relies heavily on heavy machinery to extract and process ores and minerals. 500-ton hydraulic machines are used in rock breaking, crushing, and screening operations, playing a vital role in the extraction and preparation of raw materials.
Rock Breakers: Attach to excavators to break up hard rock formations, making them accessible for further processing.
Crushers: Use compressive force to reduce the size of rocks and ores, facilitating their transport and refining.
Screening Plants: Equipped with hydraulic drives for efficient sorting and separating of crushed materials.
Recycling and Scrap Handling
In recycling and scrap handling, 500-ton hydraulic machines are used to compact, shear, and bale various materials, from metals to plastics and paper. This contributes to more efficient resource utilization and reduces environmental impact.
Metal Shears and Balers: Cut and compress scrap metal into manageable sizes for recycling.
Compactors: Reduce the volume of waste materials, making them easier to transport and store.
Shredders: Use high-torque hydraulic motors to tear apart waste into smaller pieces, facilitating further processing.
Art and Sculpture
The versatility of a 500-ton hydraulic machine extends beyond industrial applications, finding unique expression in the world of art and sculpture. Artists have utilized these machines to create large-scale installations and intricate works of art, pushing the boundaries of traditional sculpting techniques.
Metal Forming: Artists use hydraulic presses to shape metal into complex, organic forms, creating pieces that combine industrial robustness with artistic finesse.
Concrete Casting: Hydraulic presses enable the production of large, monolithic sculptures from concrete, allowing for intricate detailing and texture.
Kinetic Art: Machines are also used to create kinetic sculptures, which move in response to external forces, demonstrating the interplay between art and technology.
Innovations Driving the Future
The evolution of 500-ton hydraulic machines is marked by continuous innovation, aimed at enhancing performance, efficiency, and sustainability. Below are some of the latest trends and technologies shaping the future of these versatile machines.
Advanced Materials and Coatings
The development of advanced materials and surface coatings has significantly improved the durability and performance of hydraulic components. Wear-resistant coatings, corrosion-inhibiting treatments, and high-strength alloys are now standard in many hydraulic systems, extending their lifespan and reducing maintenance costs.
Smart Hydraulics
Smart hydraulics integrate sensors, controls, and data analytics to optimize machine performance in real-time. These systems monitor fluid pressure, temperature, and flow rates, adjusting parameters to maintain efficiency and prevent failures. Predictive maintenance algorithms can anticipate potential issues before they impact operations, minimizing downtime and maintenance costs.
Energy Efficiency
Energy efficiency is a growing concern in industrial applications, prompting innovations in hydraulic system design. Variable frequency drives (VFDs) and load-sensing pumps are among the technologies enabling more efficient fluid use and reduced energy consumption. These advancements not only lower operational costs but also contribute to environmental sustainability.
Electrification and Hybrid Systems
The trend towards electrification and hybrid systems is gaining traction in hydraulic machinery. Electric motors, battery packs, and regenerative braking systems are being integrated to reduce reliance on fossil fuels and decrease emissions. While fully electric hydraulic systems may not yet match the power density of traditional hydraulic systems, hybrid approaches offer a compelling middle ground, combining the best of both worlds.
Robotics and Automation
The convergence of robotics and automation with hydraulic technology is revolutionizing manufacturing processes. Robotic arms equipped with hydraulic actuators offer unparalleled precision and versatility in handling delicate or heavy materials. Automated cells, incorporating multiple robots and hydraulic machines, streamline production lines, enhancing productivity and quality control.
Case Studies: Real-World Applications
To illustrate the versatility and impact of 500-ton hydraulic machines, let's examine a few real-world case studies across different industries.
Automotive Manufacturing: BMW Plant
In a BMW manufacturing plant, 500-ton hydraulic presses are used to stamp out body panels for various car models. The presses operate at high speeds, producing thousands of parts per day with consistent quality. The integration of smart hydraulics has enabled the plant to achieve higher levels of automation and precision, reducing waste and enhancing overall efficiency.
Aerospace: Boeing Assembly Line
Boeing utilizes 500-ton hydraulic machines in the assembly of aircraft components. These machines are crucial for riveting and forming tasks, ensuring that each part meets the stringent safety and performance standards of the aerospace industry. The use of advanced materials and wear-resistant coatings has extended the lifespan of the hydraulic components, reducing maintenance requirements and downtime.
Construction: Hong Kong Bridge Project
In the construction of a major bridge in Hong Kong, 500-ton hydraulic pile drivers were used to install deep foundations. The machines' ability to handle high loads and operate in confined spaces was essential for the project's success.
